Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: weiwen
  • Model Number: WW-SN-42101
  • Type: TFT
  • Application: Outdoor
  • Panel Size: 42 inch
  • Max Resolution: 1920*1080
  • Viewing Angle: 178°/178°(H/V)
  • Pixel Pitch: 89*89*89*89
  • Color: 16.7M
  • Contrast Ratio: 4000:1
  • Brightness: 2000 cd/m2
  • Response Time: 6.5MS
  • Input Voltage: AC 110V~240V
  • Screen level: A+ grade
  • Screen brand: LG/SAMSUNG/AUO
  • Speaker: Yes
  • Ram: 1GB
  • Memory: flash memory 4GB
  • cooling fan: Yes
  • IP level: IP 65
  • Nework: lan,wifi,3g
  • Glass surface: anti-glare glass
  • Install: floor standing outdoor advertising digital

Packaging & Delivery

Delivery Detail: 7 to 25 days depends on kiosk quantity

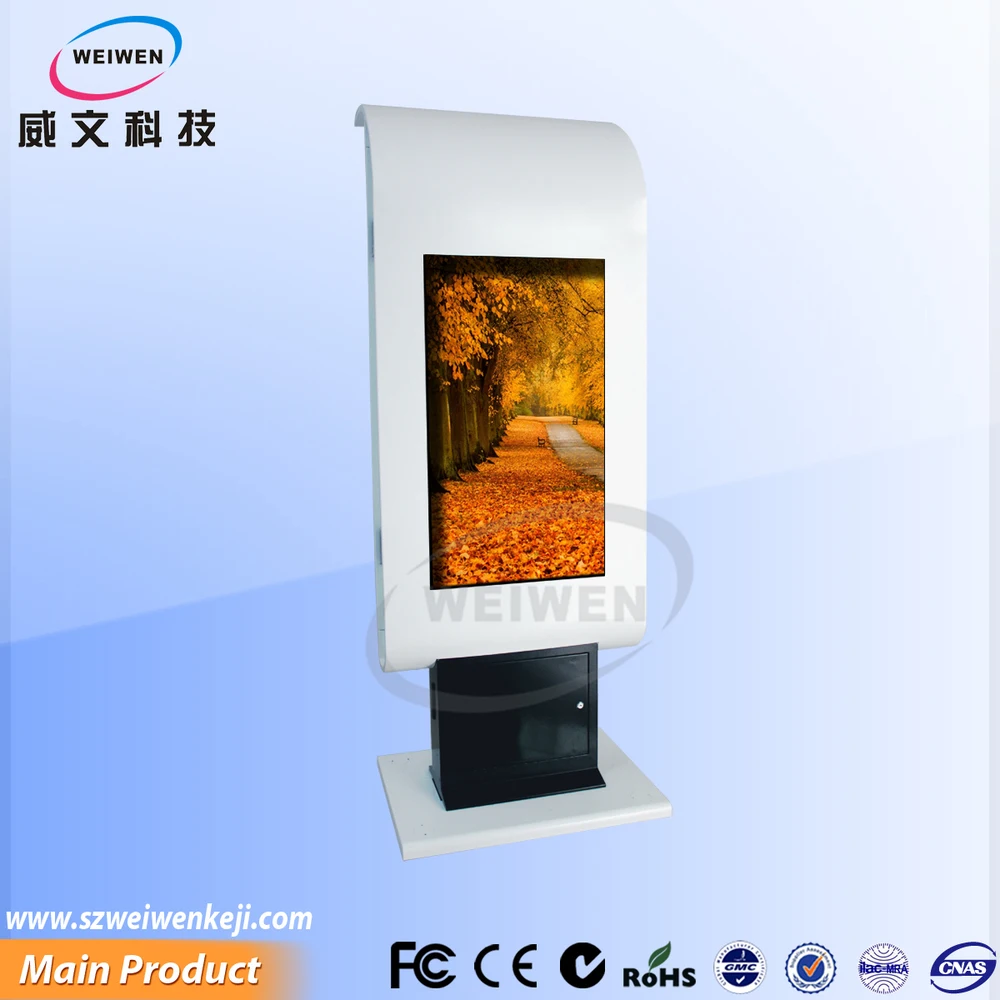

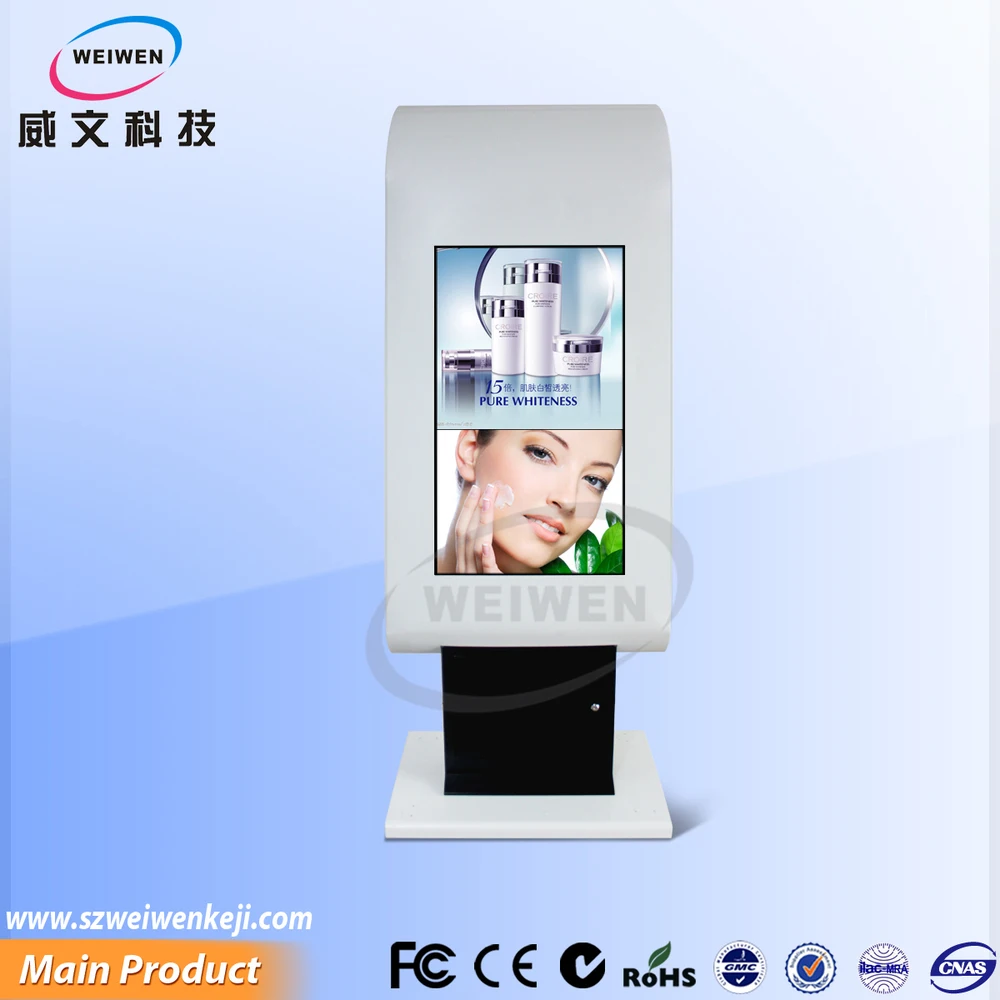

2015 new design 42 inches floor standing dual side digital signage outdoor kiosks







Application:



  • Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
  • Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
  • Non-profit Organizations:Telecommunications, post offices, hospital, schools;
  • Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
  • Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
  • Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.



Key function:



  • 1.Using Allwinner A20 multimedia HD network multimedia decoder chip,the system platfor is based on Android 4.2 OS or above.Can replace entertainment functions of the desktop PC,platfor with standardized,open vantages.
  • 2.Platfors and configurations:
  • Hardware platfor:ARM Cortex-A7 processor;
  • Software platfor:Based on the Android operating system;
  • Memory:buit-in DDR3,1GB;
  • Flash memory:NAND 4GB.
  • 3.Support a number of different templates scenes,multiple task package looping.
  • 4.Support HD resolution 1920*1080,1080P HD video and photo playback;built-in HDMI 1.3 support 1080P and 3D output.
  • 5.Full HD video format playback,compatible with a variety of playback formats:
  • Video,RMVB,FLV,MPEG1/2/4,AVI,DIVX,XCIV,WMV9,H.264,VC-1,MOV,MKV,MP4,TS,M2T,VOB.
  • Audio:MP3,WMA,WAV,EAAC+,MP2 dec,Vorbis (Ogg),AC3,FLAC (lossless audio),APE(lossless audio),BSAC;
  • Pictures:BMP/PNG/GIF/JPEG(4088*4088).
  • 6.Support Web/Flash palyer,with Web/Flash touch interactive functions,there could be strong touch function interactive platform applications.
  • 7. Strong input function:
  • Support multi-touch,optical,acoustic,resistors,capacitors and infrared touch screen,with touch screen calibration function;
  • Support infrared remote control input;
  • Support USB mouse/keyboard input;
  • Support camera/microphone input;
  • Support ID card/swipe credit card reader,keyboard password and other equipment input.
  • 8. Strong output function:
  • Support 2 display modes white boot up---vertical and horizontal screen;
  • Support LVDS/HDMI/VGA/AV output power switch freely;
  • Support 1080P HD point output;
  • Support the printer device output.
  • 9.More storage media support:support SD card,SATA hard drive.
  • 10. Multi language:
  • Support Chinese, English, Spanish, Russian, German, French, Arabic, etc. for most countries,TTF vector font support no distortion shows.
  • 11. Timer setting:
  • Help to save energy and prolong it’s wervice life;after setting the time,the entire system is automatically started at boot time,And stop funning then enter shutdown automatically while shutting down.With shutting down mode,the device does not respond to external operations,does not come output with any audio or video signals.
  • 12. Rolling text:The rolling text will be showed at the bottom of the screen while playing video advertisement.
  • 13. Clock display:Built in clock IC,can automatically update the time information after connecting to network,automatically correcting system time.
  • 14. Weather:Can automatically update the weather after connecting to network.
  • 15. Split screen display:
  • Support 1080P video,pictures,subtitles,time,weather,Web/Flash etc freely split screen function.
  • 16. Support remotely reboot,remotely shutdown,remotely screenshots,remotely delete material function.
  • 17. Support powerful network:Lan/Wifi/3G.
  • 18. With system desktop or any other applications,the advertisements and rolling text can be suspension at the front of any place of the display.
  • 19. B/S architecture,a strong backgroud server mamangement software supporting,you can set up online advertising machine parameters,create playlists issued online,real time/timing download servers commercials source,downloaded automatically display.
  • 20. Powerful cloud network platform,administrators at any place as long as loging account via the Internet,can manage all the terminals,we are the first in the industry to provide server rental model manufacturers,reducing the annoyance and expense from self-built server for end-user.



Specification list:



HARDWARE INDEX

CPU

AllWinner A20 , Dominant frequency 1.0 - 1.5GHz

Ram

1G(Optional)

Rom

NAND FLASH 4G(Optional)

Pixel Format

Up to 1080P

System

Android 4.2.2

Play Mode

Repeat,Timing,Insert Play and so on

Network

3G,Ethernet,Wifi,and other wireless device extended

Video support

Wmv,avi,flv,rm,rmvb,mpeg,ts,mp4

Audio support

Bmp,jpeg,png,gif

USB 2.0 port

USB host x 2,USB Jack x 2

Serial port

2 JACK

Ethernet

10M/100M

SD Card

SD/MMC

SATA port

SUPPORT SATA HDD

LVDS

DUAL 8 bit LVDS

HDMI

HDMI V1.4, SUPPORT 1080P

Media Output

SUPPORT CVBS VIDEO OUTPUT,LEFT RIGHT AUDIO OUTPUT, DAUL CHANNEL 4R/6W,8R/3W AMPLIFIER

RTC

Support

TIMER SWITCH

Support

Wifi

Support

3G

Support

SYSTEM UPGRADE

SUPPORT USB AND NETWORK UPGRADE



Photos:
