43inch wall mount lcd advertisement digital display monitor android network wifi 3g/4g advertising media player

FOB Reference Price:Get Latest Price
$299.00 - $699.00 / Pieces | 1 Piece/Pieces (Min. Order)
Panel Size:
Max Resolution:
1920 x 1080
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 Negotiable
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 20 Pieces)


Graphic customization (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Viewing Angle:
178 /178
Pixel Pitch:
Contrast Ratio:
350 cd/m*2
Response Time:
Input Voltage:
AC100~240V 50 /60 HZ, AC 110V~240V
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Main board:
SD Card:
Kingston 4GB
Product name:
android network advertising player
Panel brand:
100% A+ Grade Brand Panel
Operating system:
Android/Windows 7/8/10
Metal Case + Toughened Glass
VESA Standard Mounting Hole
Aspect Ratio:
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner 4CM PE foam, Middle export carton box, Outer export wooden box
43inch wall mount lcd advertisement digital display monitor android network wifi 3g/4g advertising media player
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 To be negotiated
Detailed Images


Product Description

43inch Model08 Wall Mounted LCD screen Android Network wifi 3g/4g advertising player

* With our software,customer can manage and control all the players the ads by the software installed in the PC server.
*Based on Android OS, network and wifi function are available, 3g/4g module is optional.
How to use our Anroid network advertising player:
1.Insert the USB dongle to PC to authorize this PC to install this software.Please close the firewall and some anti-virus software before installing the signage software.
2.Connect the mouse with the player, to roll down the mouse to find register, then you can input the IP address of your server.
If all players in one narrow network, you can just use any PCs to be server
If players in different place, you need use the server with public IP, and all players can be connected with the server via public IP address
3.Then you control the players by the software on PC


All our products can be with the following four versions:
***USB version ad player: update advertisement by USB (Single Version)
***Network version advertising player: update advertisement through internet, support both Android OS and UCOS OS (Network Version)
***PC version kiosk(touch screen optional): its function is the same as computer, support OS of Windows7,windows8,windows XP,Linux,Apple etc. (Built-in PC Version,touch screen optional)
***Andorid OS4.2.2 kiosk(touch screen optional): kiosks using Android OS system.

Product Name
Android Network advertising player
43inch/49inch/55inch optional
Android 4.2.2

Network version advertising player: update advertisement through internet, OS: Android4.2.2(M158)

Main hardware
Board configuration
CPU dual core ARM Cortex A9 1.5 GHz(max1.6GHz), Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB (Scalable TF/USB)
Decoding resolution
Perfect support 1080P Full HD
Main function
Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images
Play Mode
Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback;
By U-import;
U disk playback.
Intelligent Management
B / S architecture, GTV digital signage release management system(56IQ is optional software system): a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions
C / S architecture, ADPE / EzPoster programming software: programming; schedule; Export card; two-way encryption; terminal timer switch and other functions
Multimedia Support
Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats

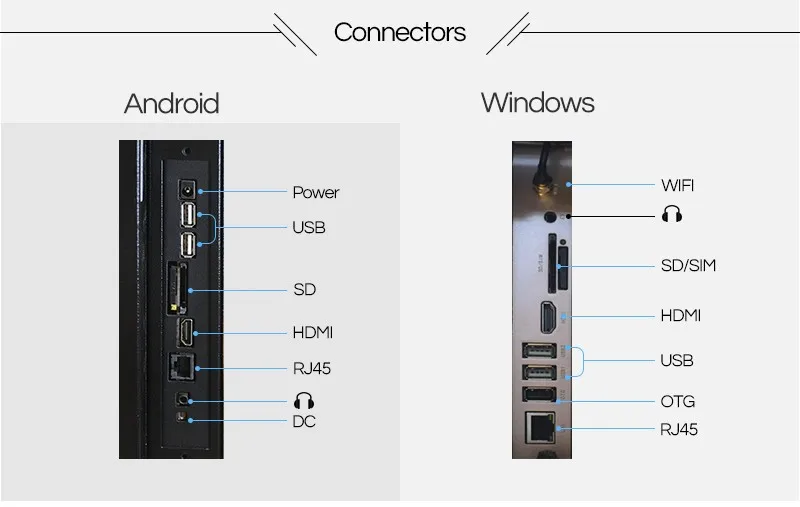

Basic interface
Power Interface
Video input interface
VGA×1            HDMI×1
Video output interface
X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle
Audio input interface
X 1, linear input, 3.5MM headphone jack
Audio output interface
X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack
Ethernet Interface
X 1,10 / 100M Ethernet
WiFi interface
X 1,WIFI(150Mbps)
3G module interface
PCIE slot (supporting a phone deck) x 1 ;           USB interface x 1
USB2.0 interface
Backlight interface
X 1, 6 core 2.0mm jack
RTC Real-Time Clock
Time synchronization
Watchdog reset
Using an internal watchdog, abnormal automatic recovery

Other solutions:

If you need more higher configuration,RK3288 QUAD core /A83T Eight core/PC version is optional.

Solution A. Single version

Suitable for few qty of advertising player,need manually update the ads by inserting USB/SD card.
simple to use and cheap

Solution B. Anroid 5.1 RK3288

Suitbable for many players to control to play the ads.
Can install the apps,scan the webpage,etc. and add touch function.

Solution C. PC version

Acts like a PC.Can be installed the software and add touch function
